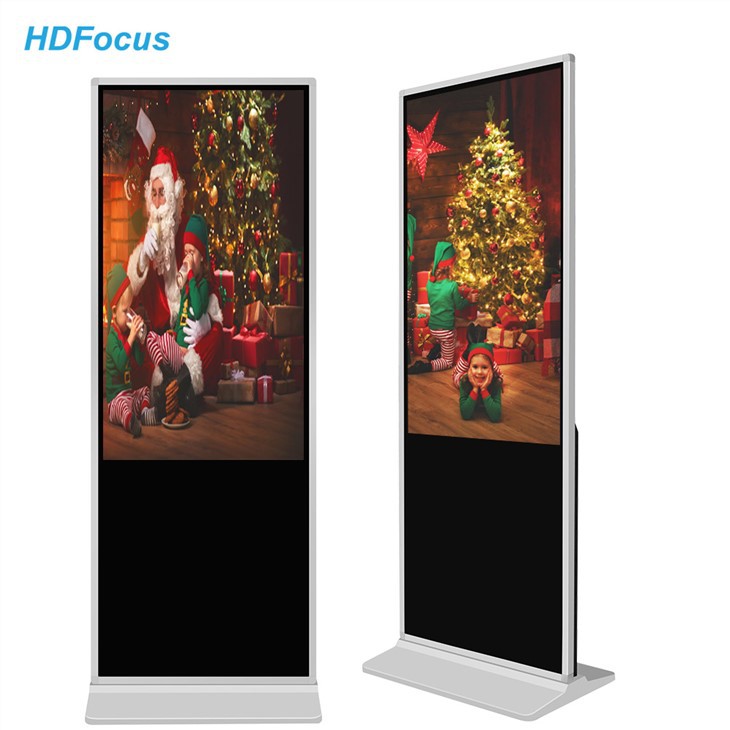

Mall Kiosk with Capacitive Touch Screen
In the digital signage application, the interactive is becoming more and more important, so it is important that the floorstanding kiosk can built in touch function.
Model: HD-50F-T Windows Max
In the digital signage application, the interactive is becoming more and more important, so it is important
that the floorstanding kiosk can built in touch function.
The feature of HD-50F-T Windows Max are as follow:
✓ Excellent design with apple shape, aluminum alloy edging；
✓ 50" LG brand new original panel with LED backlight;
✓ Excellent design with super slim body of only 30mm thickness;
✓ Support to work together with HD-DS signage software.
✓ Industrial level design, support 24/7 working;
✓ CE&RoHS certified.
We also offer a full digital signage software as a total solution.
Product Specification
Display:
Display Screen | 50" LG TFT Panel with LED backlight |
Display Ratio | 16:9 |
Color | 16.77M colors |
Display area | 1095.84*616.41mm |
Resolution | 1920*1080 |
Brightness | 350cd/m2 |
Response Time | Less than 5ms |
Contrast | 3000:1 |
View Angle | 178° left and right, up and down |
Life time | Over 60, 000hrs |
Performance:
Windows Max | Intel® Core Dual i5 CPU, 1.8G Hz |
RAM | DDR 3, 4G RAM |
SSD | 120G SSD (can expand) |
Main Board | Industrial board |
Network Port (Windows OS) | 10/100M/1000M adaptive port |
WIFI | Support WIFI |
Windows OS | Windows 7, 8.1, 10 trial version or crack version |
Interface:
USB | USB*2, |
COM | COM*1 |
HDMI Output | HDMI*1 |
VGA Output | VGA*1 |
MIC Audio Input | MIC Audio*1 |
Line Audio Output | Line*1 |
Network | RJ45*1, built-in Gigabit Ethernet |
WIFI | WIFI*1, support 802.11 b/g/n |
Touch:
Touch Type | Capacitive |
Points | 10 points, can zoom in or out picture |
Response Time | Less than 5ms |
Touch effective identification | > 1.5mm |
Scanning frequency | 200Hz |
Scanning precision | 4096*4096 |
Life Time | Over 50, 000, 000 touches |

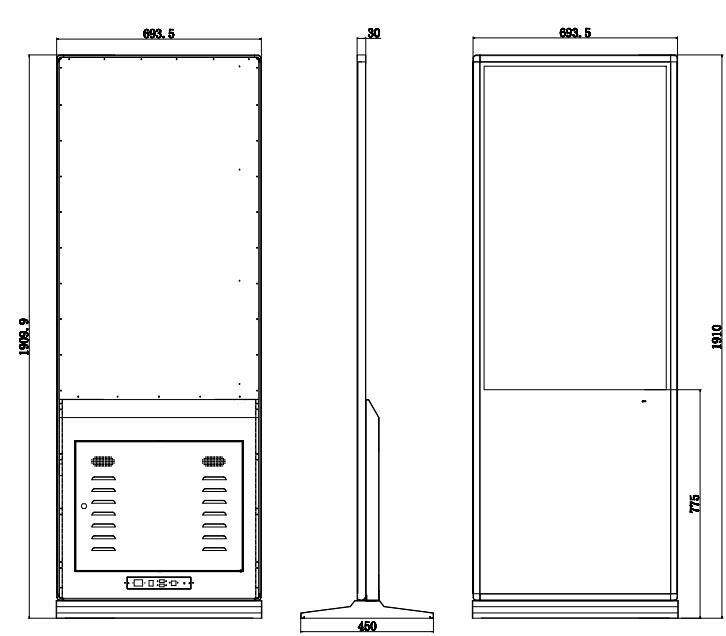

Dimension:
Product Features
Application
The development direction of advertising machine has been continuing this mission: intelligent interaction,
public service, entertainment interaction, etc.
LCD advertising machine is usually referred to as LCD advertising machine, English Name: advertising LCD display.
Taking TFT-LCD as an example, the key parts include: glass substrate, color filter, polarizer, driving IC,
liquid crystal material, directional film, backlight module, ITO conductive film, and other materials and chemicals
used in cell manufacturing process.
Certificate
This product has passed the CE, RoHS and FCC certificate as the following:
FAQ:
Q: How long is the warranty time for your company?
A: We usually offer 1 YEAR warranty after the delivery, but our product screen is LG screen, service life is
8-10 years, 1 year warranty is for one set hardware product (including accessories), we also can provide
more warranty time according to actual requirement.
Q: What payment method your company accept?
A: We accept most of the payment methods, it is mainly by TT/Western Union.
Q: why we can trust you?
A: First, our company has been in Alibaba. com for many years and have been golden suppliers for years.
what'smore, we've got quite a lot authority certificates, for example, ISO9001, ISO14000, CE, CC, RoHS,
FCC, Alibaba onsite check certificate.

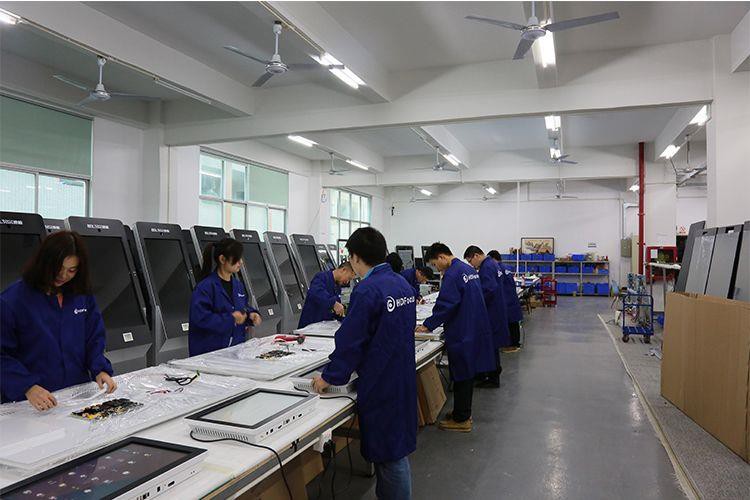

Second, we have own manufactory, can provide one full set service: design-produce-installation-test-package
and so on, package usually is carton/ wooden/ flight case for choice.
we also can provide custom service according to requirment.
