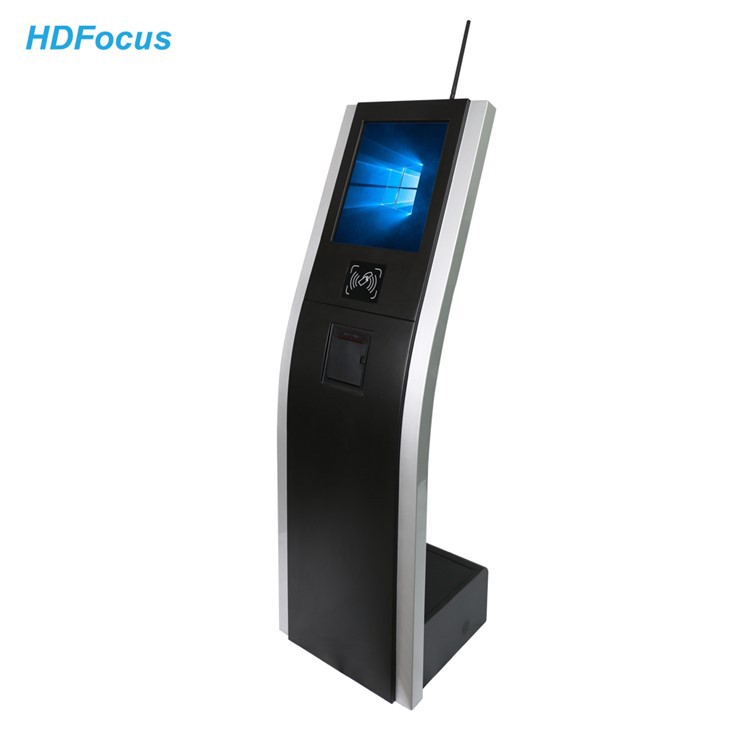

Ticket Kiosk With Touch

1 set of queue machine consisting of 17 pcs of led display and 17 pcs of call terminal,

Wirelesss speaker 2 and media player 1 wireless transmitter 1

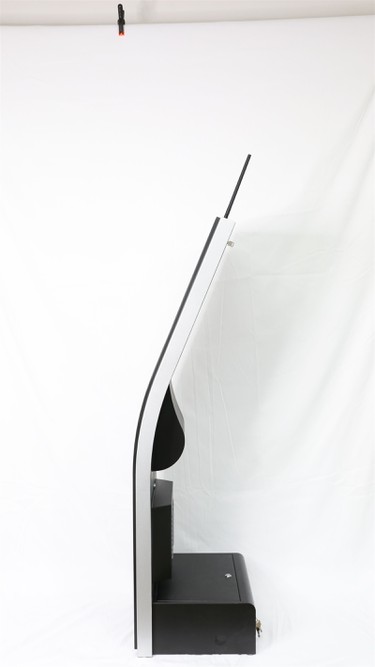

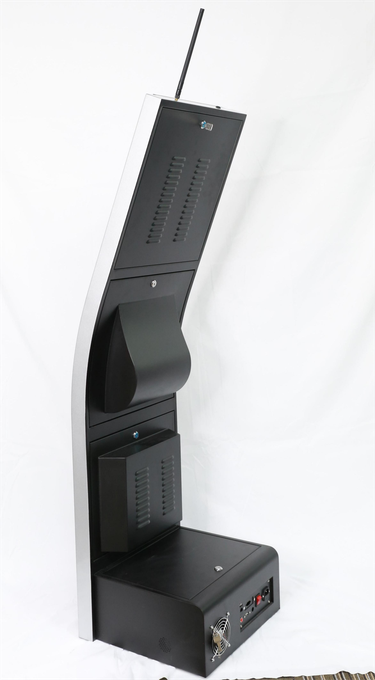

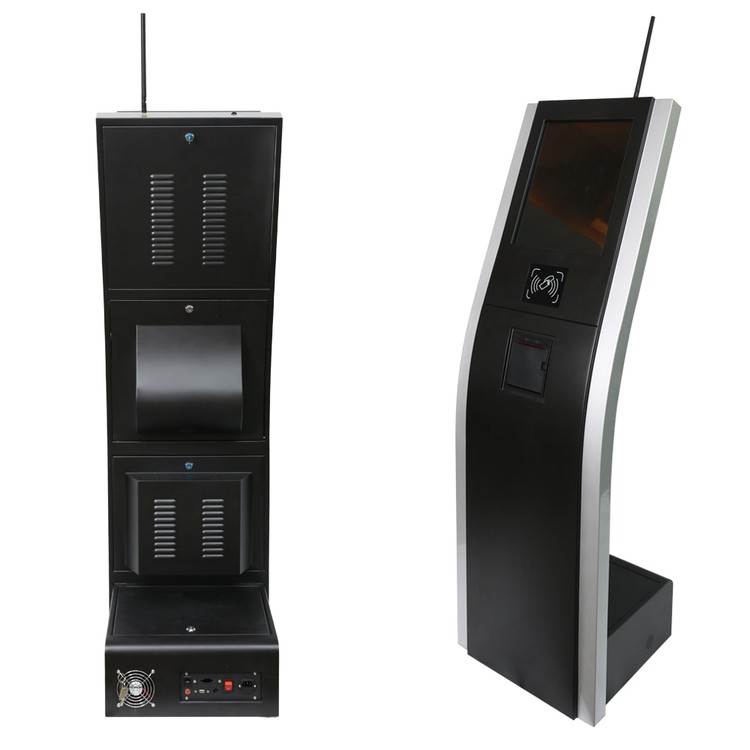

Product Outlook

Product Features

The Ticket Kiosk with Touch comes with a wide range of features that make it a top-of-the-line product.

These features include:

1. User-friendly touch screen interface
2. Multiple language support
3. Credit card and cash payment options
4. High-resolution display for clear ticket selection
5. Reliable and secure hardware and software

Specification

✔17” brand new original panel with LCD backlight;
✔Main control service system: the core of the call system, which manages and controls each subsystem;
✔Database management: data backup and restore;Ticket collecting sub-system: provide information entry,

number allocation, printing small ticket function;
✔Call subsystem: to allocate customers to specific service Windows through business rules and procedures;
✔Display subsystem: realize the basic information of the ticket is displayed on the LED screen or

LCD screen to remind customers;
✔Voice subsystem: realize voice reminder, voice broadcast ticket number to the window or other types of room, etc.
✔Evaluation subsystem: conduct satisfaction survey on staff's attitude and efficiency to provide

the basis for improving staff's work efficiency;
✔Reservation subsystem: realize the priority of reservation number, save waiting time,

support wechat, network and other reservation methods;



Basic Parameter
Product name	Ticket Kiosk
Model	PD2230
Screen	17 inch widescreen LCD
Resolution	1440*900
printer	EPSON; M - T532; 80mm thermal paper width; 200mm/s printing speed

Performance

CPU	Intel® Celeron J1900
RAM	2G RAM
Storage	64G SSD
Main Board	Industrial motherboard
Graphic Card	Integrated graphics card
Network Port	10/100M/1000M adaptive port
Windows OS	WIN7 Flagship version 32 bit

Other

The input voltage	AC 220V 50Hz
Signal output	433 MHZ. 20dBm; 100 mw ∽ 3 w; Transfer radius 150 m to 300 m
Weight	46kg
Size	1500×450×460mm
Working Temperature	0－ 40 ℃
The input voltage	AC 220V 50Hz
color	White or Black

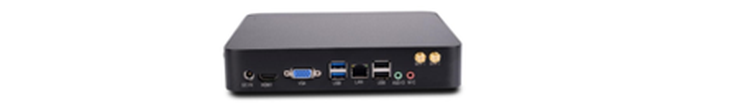

Media Player

Basic Parameter

Product name	Media player
Model	J1800
power	DC12V
size	197*197*36mm

Performance

CPU	Intel® Celeron J1800
RAM	2G RAM
Storage	64G SSD(can expand)
Main Board	Industrial motherboard
Graphic Card	Integrated graphics card
Network Port	10/100M/1000M adaptive port
Windows OS	WIN7/win8/win10/linux

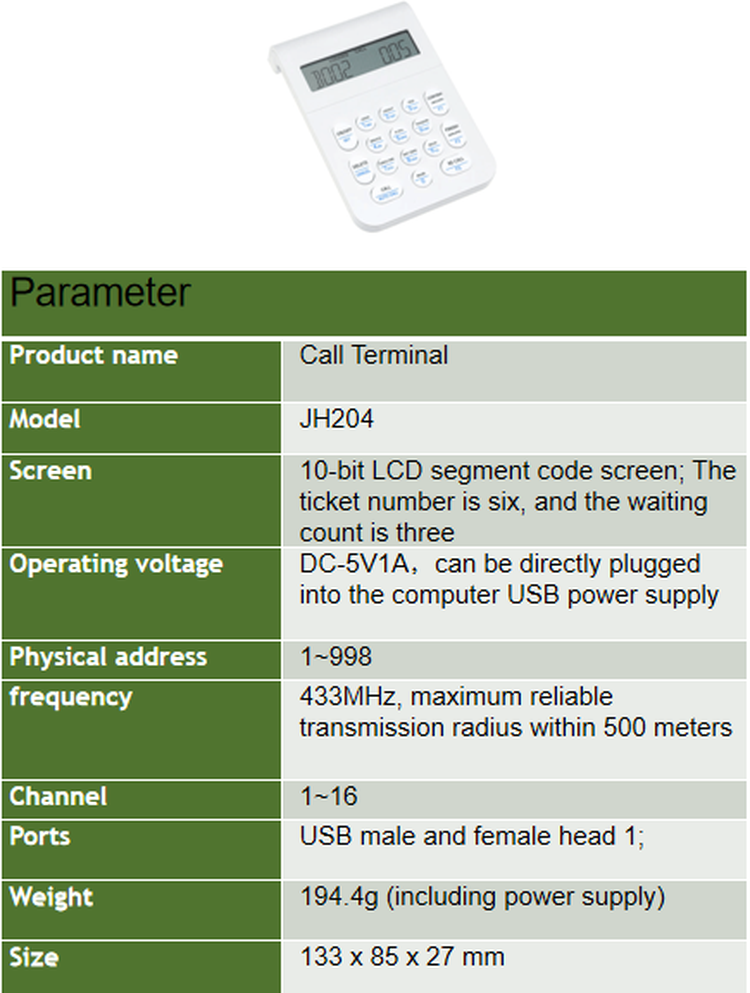

Call Terminal

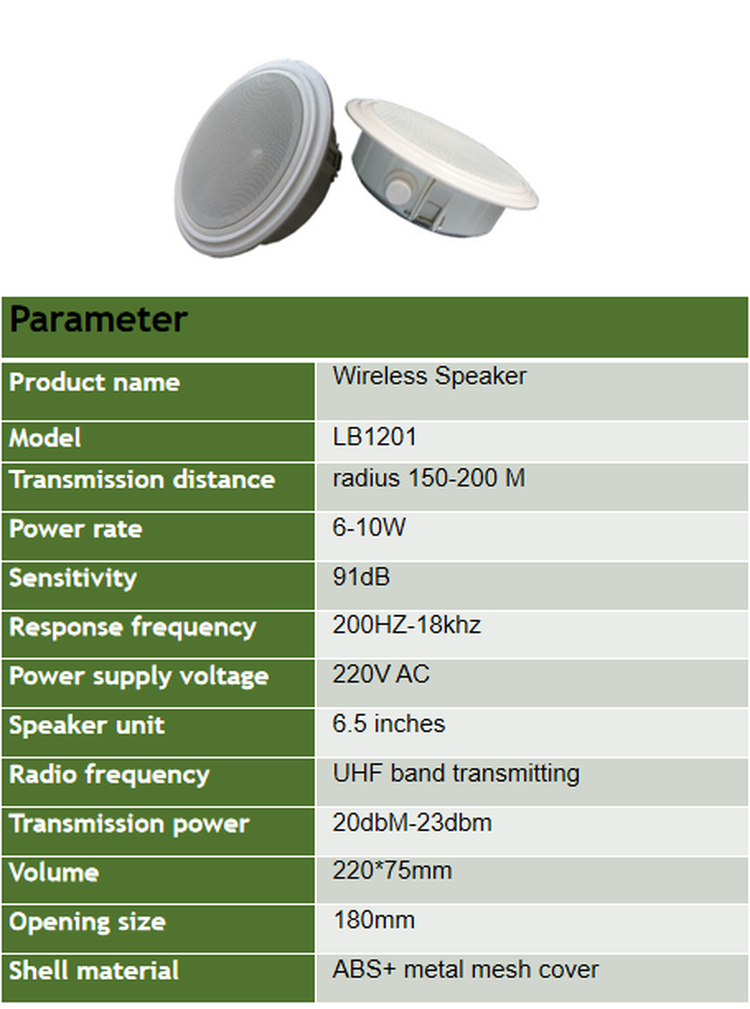

Wireless Speaker

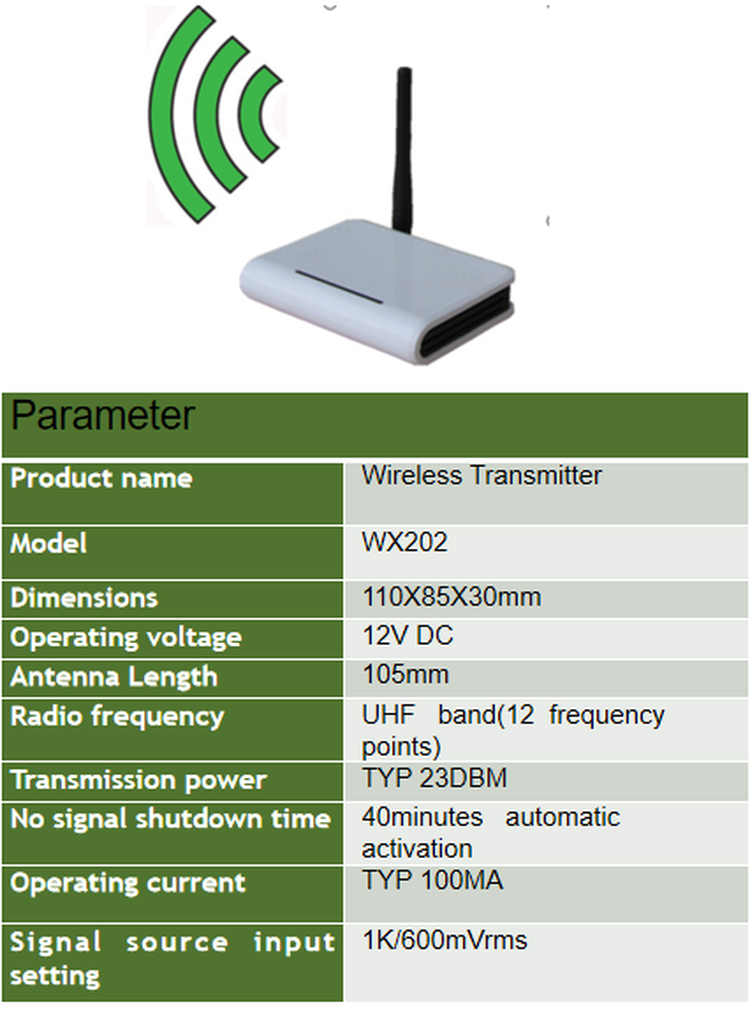

Wireless Transmitter

Advantages

The TicketKioskwithTouch offers multiple advantages to customers:
1. Convenient and easy-to-use interface
2. Faster transaction process, eliminating the need for long lines and wait times
3. The kiosk can be installed in different locations, increasing accessibility for customers
4. User-friendly interface that reduces the need for customer support staff
5. Provides a secure and reliable platform for ticket purchases



Suitable for

The Ticket Kiosk with Touch is suitable for various types of events, including music concerts,

sports tournaments, and movie theaters. It is also ideal for different venues, including shopping malls,

airports, and transportation hubs.

In conclusion, the Ticket Kiosk with Touch is a game-changing product that makes it easy and convenient

for customers to purchase tickets, reducing wait times and increasing overall customer satisfaction.

Its advanced features, advantages, and suitability for different events and venues make it an excellent

addition to any ticket-selling business or event organization.
